Strength from Within
Low maintenance All vinyl 5 7/8” mechanical frame with steel reinforced, welded Euro style sash combines strength and beauty.
Built Right
Sliding 2, 3, or 4-panel door systems engineered for smooth operation, tight seals, and reliable performance over time.
Efficiency, Sealed In
Premium Black “S” Class Super Spacer® and full 1” or 1 3/8” insulated tempered glass complete with Double Low E and Argon provide high-efficiency performance year-round.
Confidence Comes Standard
Standard twin-point lock and Patented Security Kicklock, making it much harder to force open than a standard single-point lock door.
Premium Finish, Lasting Protection
A full anodized aluminum threshold is a robust, single-piece sill that seals the bottom of the patio door for long-lasting durability, weather resistance, and a refined finish.
All-Season Performance
Triple sealed with 2 additional seals on frame and sash for optimal performance in all weather conditions.
Refined Motion. Rugged Build
Heavy-duty steel rollers with tight-tolerance ball bearings for effortless, quiet sliding, long life, less maintenance, and a better door seal for improved security and efficiency.
Patio Door Options + Accessories
Endless combinations of finishes, glass, and details—customized to create patio doors that fit your space perfectly.
Pick a colour that best fits the personality of your home. We offer a wide spectrum of standard colour options and custom colours to fit your design requirements, indoors and out. With the advanced technology of water-based paint, you will enjoy years of bright, maintenance-free colour.
** DISCLAIMER: Colours for reference only, the colours will vary on finished products. Please contact your local KV dealer for Paint Samples or a Colour Chart **
Standard Colours
White
Blue White
Solid Cream
Maize
Cashmere
Almond
Wicker
Fieldstone
Monterey Sand
Sandalwood
Brownstone
Pebble
Cliffside
Dover Grey
Stone Grey
Storm
Pewter
Slate
Charcoal
Midnight Surf
Ash Grey
Iron Ore
Wedgewood Blue
Old World Blue
Midnight Blue
Juniper Grove
Moonlit Moss
Forest Green
Sable
Windswept Smoke
Espresso
Chestnut Brown
Nutmeg
Commercial Brown
Antique Brown
Burgundy
Red
Black
Finishes
Standard
Matte
Metallic
Jamb extensions allow the windows to fit perfectly within the
opening. KV Custom Windows + Doors has a variety of jamb
extensions to fit your style and functional needs. With the widest
range of depths available in the industry, KV can customize any
jamb depth you require.
***Disclaimer: Some limitations apply on shaped windows ****
2 3 8 FJP Primed
3 3 8 FJP Primed
4 9 16 FJP Primed
7 1 2 FJP Primed
2 3 8 Vinyl Wrapped
3 3 8 Vinyl Wrapped
4 9 16 Vinyl Wrapped
7 1 2 Vinyl Wrapped
Talk to your local KV Dealer about paint options to match your window colour.
KV Custom Windows + Doors offers a variety of PVC
Jamb Extension options. These extension options provide
a low-maintenance choice for homeowners where they
do not need to worry about moisture build up.
Moisture or condensation can simply be wiped off!
-
1 3/8”
-
2”
-
3 3/8”
Combine one of the PVC Jamb Extensions with an interior casing of your choice to create a complete, maintenance-free interior package.
Jamb Extension
Our 6” PVC foam jamb extension is designed to accommodate any area with high moisture or the requirement of a shape. Our foam extension can be cut to size to accommodate any depth from 1” to 6”.
6” PVC Foam
Talk to your local KV Dealer about paint options to match your window colour.
KV Custom Windows + Doors offers a variety of PVC interior
casing options to match the style you are looking for. These casing
options provide a low-maintenance choice for homeowners where
they do not need to worry about moisture build up. Moisture or
condensation can simply be wiped off!
2 5/8” PVC Casing with Optional Corner Block
2 5/8” PVC Contemporary Casing with Optional Corner Block
3 3/8” PVC Casing with Optional Corner Block
3 3/8” PVC Contemporary Casing with Optional Corner Block
These exterior accessories will add even more
beauty, value and efficiency to an already
outstanding window.
***Disclaimer: Some limitations apply on shaped windows ****
-
1/4" Flush
-
7/8" Standard
-
1 1/4" Standard
-
1 1/4" Siding
-
1 1/4" Contoured
-
2" Stepped
-
2 1/2" Siding
-
3 1/2" Stepped
-
3 1/2" Contoured
Nailing Fins
A Nail Fin is installed on the exterior side of the window to secure the window.
-
1 1/8” Set Back
-
Flush
The Internal Grills are timeless designs on a window using
horizontal and vertical bars that separate the windows into panes.
In addition to having the largest selection of grills, KV Custom
Windows + Doors can also create a customized grill pattern to
perfectly fit your home.
***Disclaimer: Some limitations apply on shaped windows ****
Flat 1/4” x 5/8” - White
2-Tone Available
/ Pewter
Cream
2-Tone Available /
Brass
Flat 1/4” x 1” - White
2-Tone Available
Georgian 3/8” x 3/4” - White
2-Tone Available
/ Cream
2-Tone Available
Georgian 3/8” x 1” - White
2-Tone Available
Rectangle 1/4” x 5/16” - White /
Pewter /
Brass
Pencil 1/4” x 5/16” - White /
Pewter /
Brass
-
KV Imperial Patio Doors 1 3/4" Sill Extension
-
Custom glazing pocket designd to accept double glazed 1" overall sealed units or triple glazed 1 3/8" overall sealed units
-
Welded Sash for structural Integrity
-
Multichambered frame and sash to enhance strength, stability and overall thermal performance
-
Full perimeter steel reinforcement in all operating and fixed sash
-
Extruded wide rail screen with mortise lock and keeper
-
KV White 136 Standard
Sizing chart to be reused form brochure
Imperial Patio Door
Sizing Chart

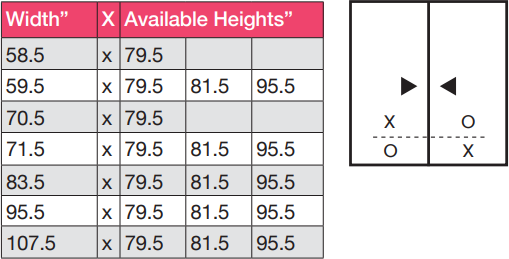

2 Panel Operation: X - Operating O - Fixed (Chart + Illustration)

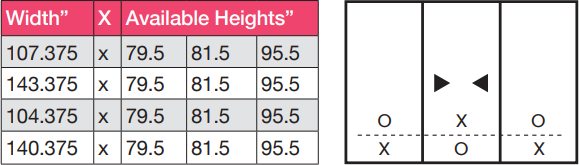

3 Panel Operation: X - Operating O - Fixed (Chart + Illustration)

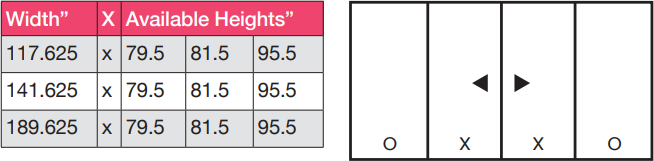

4 Panel Operation: X - Operating O - Fixed (Chart + Illustration)
Imperial Patio Door with Mini Blind
Sizing Chart

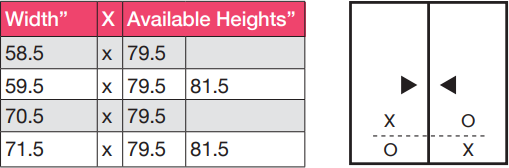

2 Panel Operation: X - Operating O - Fixed (Chart + Illustration)

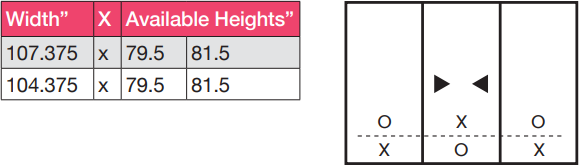

3 Panel Operation: X - Operating O - Fixed (Chart + Illustration)

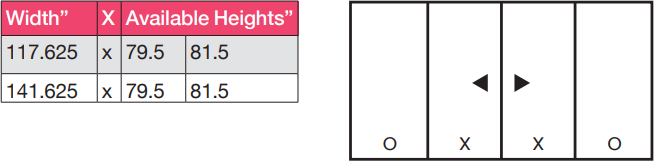

4 Panel Operation: X - Operating O - Fixed (Chart + Illustration)

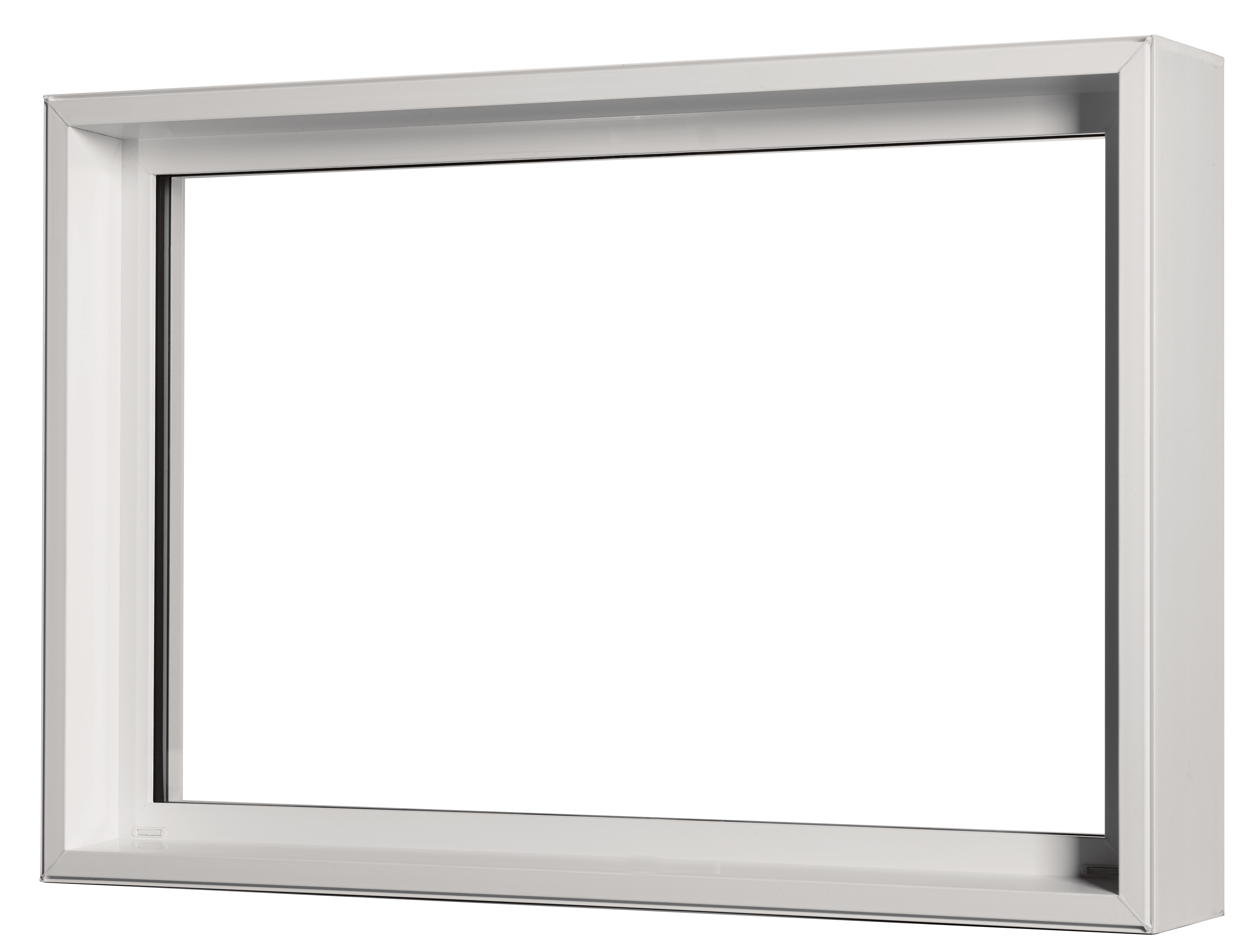

Transom
The KV Imperial Patio Door Transom extends the height of any KV Imperial Patio Door. The low profile main frame sightlines reduce the visibility of the frame and increase the visibility of the glass to allow more sunlight into your home.

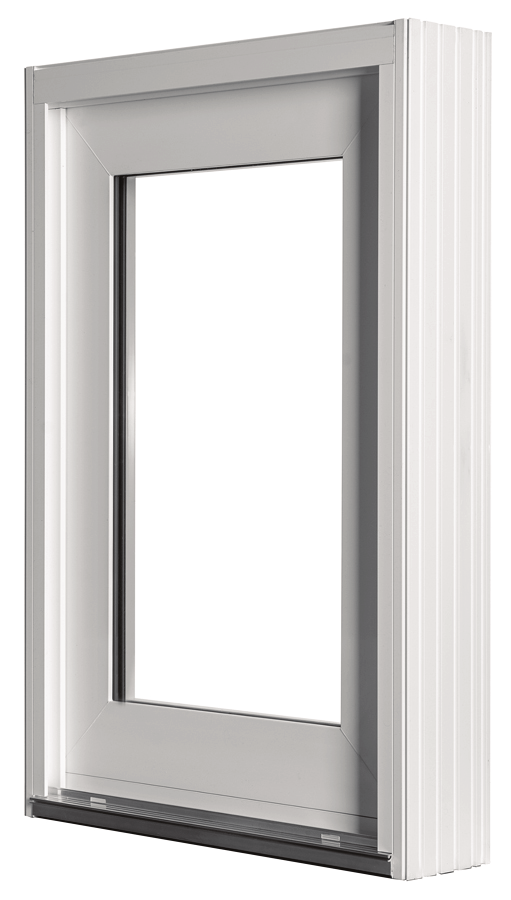

Sidelite
The KV Imperial Patio Door Sidelite extends the width of any KV Imperial Patio Door. The main frame and sash sightlines combine to replicate the look of the Patio Door panels, creating a seamless transition between the Patio Door and Sidelites.
Add the final touches to your Patio Door by pairing a sill extension that matches the Patio Door sill.
Clear Anodized
Black
Please visit your local KV Dealer to have a closer look at the finish options.
Traditional Hardware
Our traditional handles have a curved, smooth handle bringing a classic distinction and sophistication to your home.
White
Cream
Black
Satin
Nickel
Contemporary Handles
Our contemporary handles are sleek, modern, and come in various finishes that will enhance the appearance of your home.
White
Cream
Black
Satin
Nickel
Multi-Point Lock System
For maximum security, KV offers a Multi-Point lock system that activates automatically by simply closing the door. The upper and lower latches instantly engage and become 2 additional lock points. The door is locked when you simply turn the thumb latch or key, engaging the central lock points.

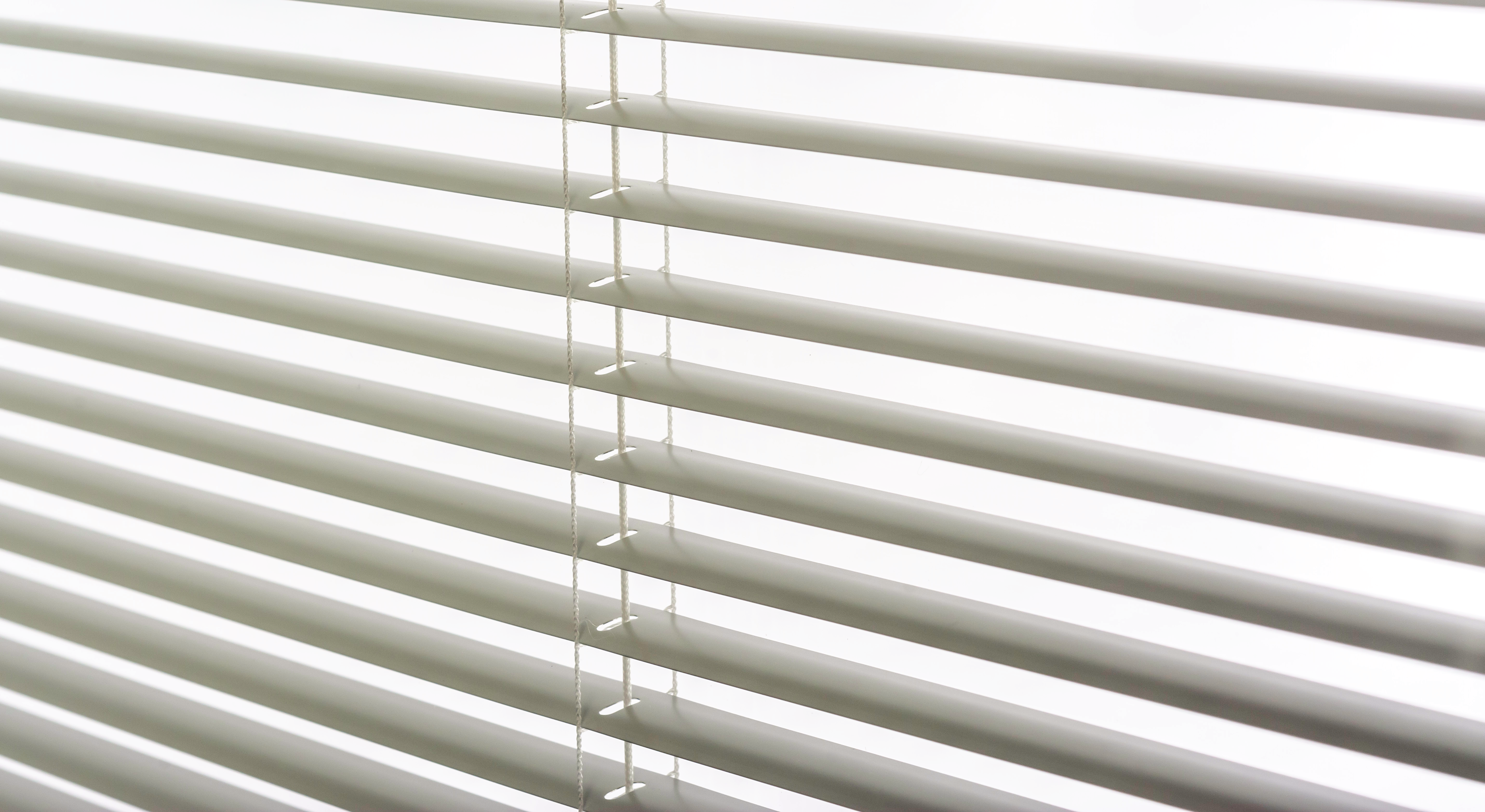

Integrated Mini Blinds allow you to control the amount of privacy and sunlight you want in your home.
Mini blinds come on all panes, and they have standard raise, lower and tilt features.
Mini blinds are available in white as standard or in Black to complement your painted patio door and hardware selection.
Simulated Divided Lites add a unique, transitional or traditional
look to a home while ensuring modern energy efficiency and
performance. A Simulated Divided Lite is when a window has
grills attached to the inside and outside of the glass.
1 1/8” Beveled Patio Door SDL
Talk to your local KV Dealer about paint options to match your window colour.
